 P系列行星齿轮减速机安装尺寸（平键和键槽）
|
轴端螺纹孔mm |
|
轴径Фd |
≥16-21 |
＞21-24 |
＞24-30 |
＞30-38 |
＞38-50 |
＞50-85 |
＞85-130 |
＞130-225 |
＞225-320 |
＞320-500 |
＞500-700 |
|
螺孔尺寸 |
M6 |
M8 |
M10 |
M12 |
M16 |
M20 |
M24 |
M30 |
M36 |
M42 |
M48 |
|

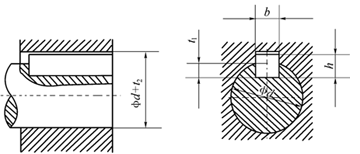

平键和键槽 mm |
|
|
直径
d |
宽度
b |
高度
h |
轴键槽深度
t1 |
轮毂键槽深度
d+t2 |
|
＞8-10 |
3 |
3 |
1.8 |
d+1.4 |
|
＞10-12 |
4 |
4 |
2.5 |
d+1.8 |
|
＞12-17 |
5 |
5 |
3 |
d+2.3 |
|
＞17-22 |
6 |
6 |
3.5 |
d+2.8 |
|
＞22-30 |
8 |
7 |
4 |
d+3.3 |
|
＞30-38 |
10 |
8 |
5 |
d+3.3 |
|
＞38-44 |
12 |
8 |
5 |
d+3.3 |
|
＞44-50 |
14 |
9 |
5.5 |
d+3.8 |
|
＞50-58 |
16 |
10 |
6 |
d+4.3 |
|
＞58-65 |
18 |
11 |
7 |
d+4.4 |
|
＞65-75 |
20 |
12 |
7.5 |
d+4.9 |
|
＞75-85 |
22 |
14 |
9 |
d+5.4 |
|
＞85-95 |
25 |
14 |
9 |
d+5.4 |
|
＞95-110 |
28 |
16 |
10 |
d+6.4 |
|
＞110-130 |
32 |
18 |
11 |
d+7.4 |
|
＞130-150 |
36 |
20 |
12 |
d+8.4 |
|
＞150-170 |
40 |
22 |
13 |
d+9.4 |
|
＞170-200 |
45 |
25 |
15 |
d+10.4 |
|
＞200-230 |
50 |
28 |
17 |
d+11.4 |
|
＞230-260 |
56 |
32 |
20 |
d+12.4 |
|
＞260-290 |
63 |
32 |
20 |
d+12.4 |
|
＞290-330 |
70 |
36 |
22 |
d+14.4 |
|
＞330-380 |
80 |
40 |
25 |
d+15.4 |
|
＞380-440 |
90 |
45 |
28 |
d+17.4 |
|
＞440-500 |
100 |
50 |
31 |
d+19.4 | |
|
|
